Stainless Steel Vacuum Emulsifying Mixer for Chocolate Butter Mayonnaise
Introduction
The machine has triple blender, hydraulic lift cover, high-speed homogenizer (frequency speed regulation). Fast-cutting vortex emulsification blender is used in the homogeneity part, which can scrape in a low speed and automatically blend and snuggle up to the bottom and wall of boiler. The machine draws power material by the way of vacuum in order to prevent the powder flying. The whole working procedure is operated in the condition of vacuum in order to prevent the material coming int being bubble after high- speed blending and reach the request of sanitation and asepsis. CIP cleaning system is equipped in this system. The contact part of vessel and material is made from SUS316L material.
Working Process
Put the materials into premix tank oil phase tank and water phase tank, after heated & mixed in water tank and oil tank, it can drawn the materials into emulsifying tank by vacuum pump. Adopting the middle stirrer & Teflon scrapers residues in emulsifying tank that sweep the residues on the wall of the tank to makes the materials wiped off become the new interface constantly. Then the materials will cut off, compressed and fold by the blades to stir, mix and run to the homogenizer. By the strong cutting off, impact and turbulent current from the high-speed shear wheel and fixed cutting case, the materials are cut off in interstices of stator and rotor and turn to particles of 6nm-2um promptly. Because the emulsifying tank is working under the vacuum state, the bubbles that produces in the process of mixing is taken away in time.
Product Details
① Premium-grade 316 stainless steel and PTFE construction ensures corrosion resistance, low-noise operation, and optimized performance efficiency.

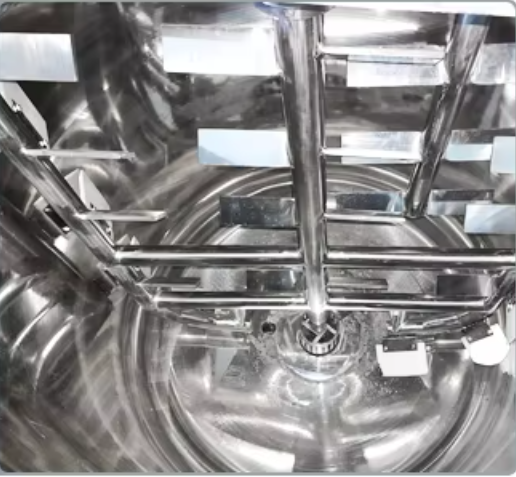

② Frame-mounted scraper mixer incorporating a dispersion mechanism achieves superior material refinement during blending.
Application
Cosmetic Industry: Cream, Lotion, Lipstick, Shampoo
Food Industry: Mayonnaise, Dressing, Jam, Butter, Margarine.
Chemical Industry: Polyester, Synthetic fiber Paint
Industry: Paints, Synthetic resin paint
Others: Color, Wax, Shoe cream, Coating liquid
